TOOLTOP ET2010A Portable Digital Oscilloscope Design and Capabilities
The ET2010A combines a 2.5Msps sampling rate with 1MHz bandwidth, providing sufficient resolution to observe switching ripple, power supply noise, and sensor signal integrity on industrial and automotive circuits. AUTO range AC/DC functionality automatically sets input sensitivity, reducing operator error during field service calls where time pressure runs high. Its graphical display renders waveforms while simultaneously showing peak values, RMS readings, frequency, and duty cycle—information that drives faster diagnostics than numerical readouts alone. The portable form factor weighs 500 grams and measures 4 by 2 inches, fitting alongside traditional multimeters in a service technician’s kit bag. Rated to 600V input protection and featuring isolated measurement channels, the ET2010A handles signals across automotive, HVAC, industrial control, and telecommunications environments.
Why Engineers Choose the TOOLTOP ET2010A Portable Oscilloscope
Equipment startup commissioning requires portable instruments that reveal transient phenomena invisible to simple multimeters—the graphical display on this oscilloscope shows startup inrush current, switching harmonics, and control signal timing in real time. Technicians working on variable frequency drives, soft starters, and phase control circuits benefit from the dual-channel configuration and synchronized triggering that captures intermittent faults. The 600V rating covers single-phase and three-phase power systems without requiring external scaling resistors or transformers that complicate portable field work. Battery operation delivers four hours of continuous measurement between charges, a runtime that covers typical service calls and shift patterns. Shop the TOOLTOP official store to order online and receive fast shipping with comprehensive warranty coverage and technical assistance.
Package List:
1 X Oscilloscope multimeter
1 x One pair of test leads
1 x English manual
1 x Packaging box
Oscilloscope multimeter 2-in-1
1MHz bandwidth
4000 counts display
3 Kinds of Trigger mode: Automatic mode, Normal mode, Single mode
AUTO-CAPTURE
One-touch automatic waveform capture function

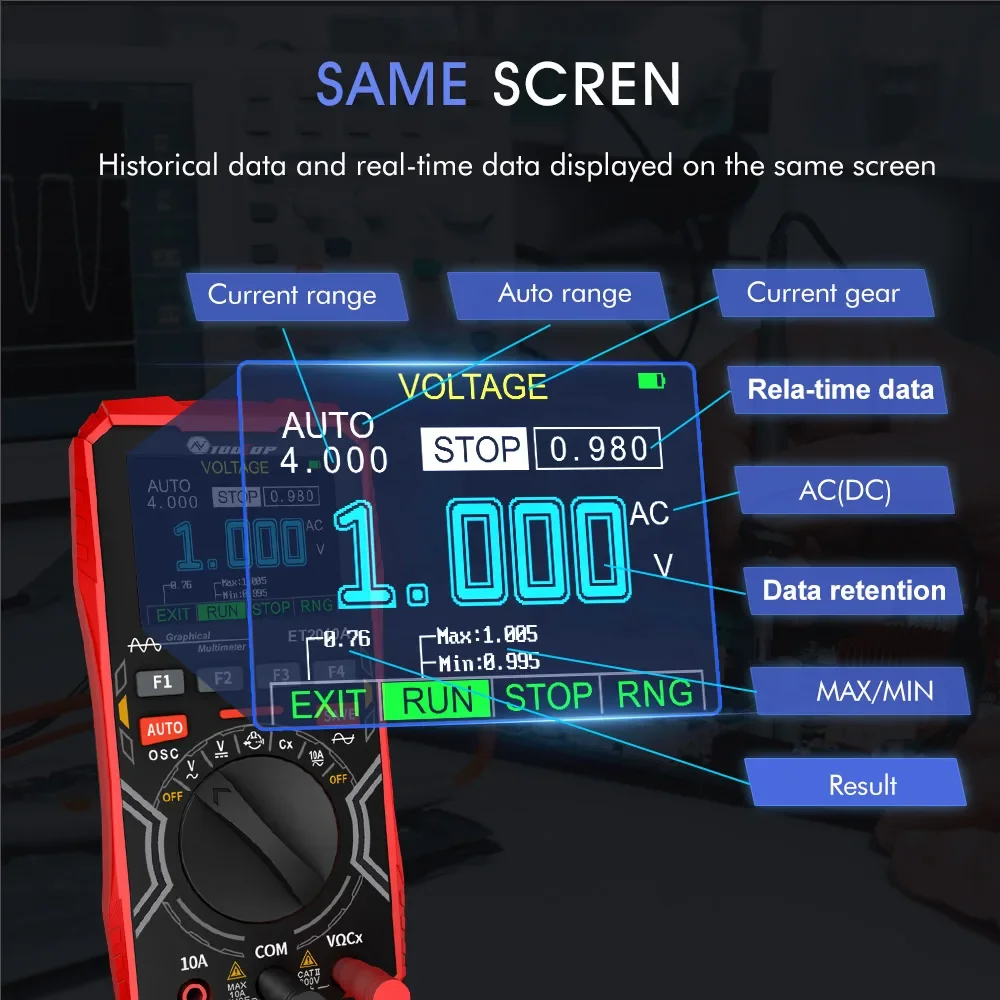

SAME SCREN
Historical data and real-time data displayed on the same screen

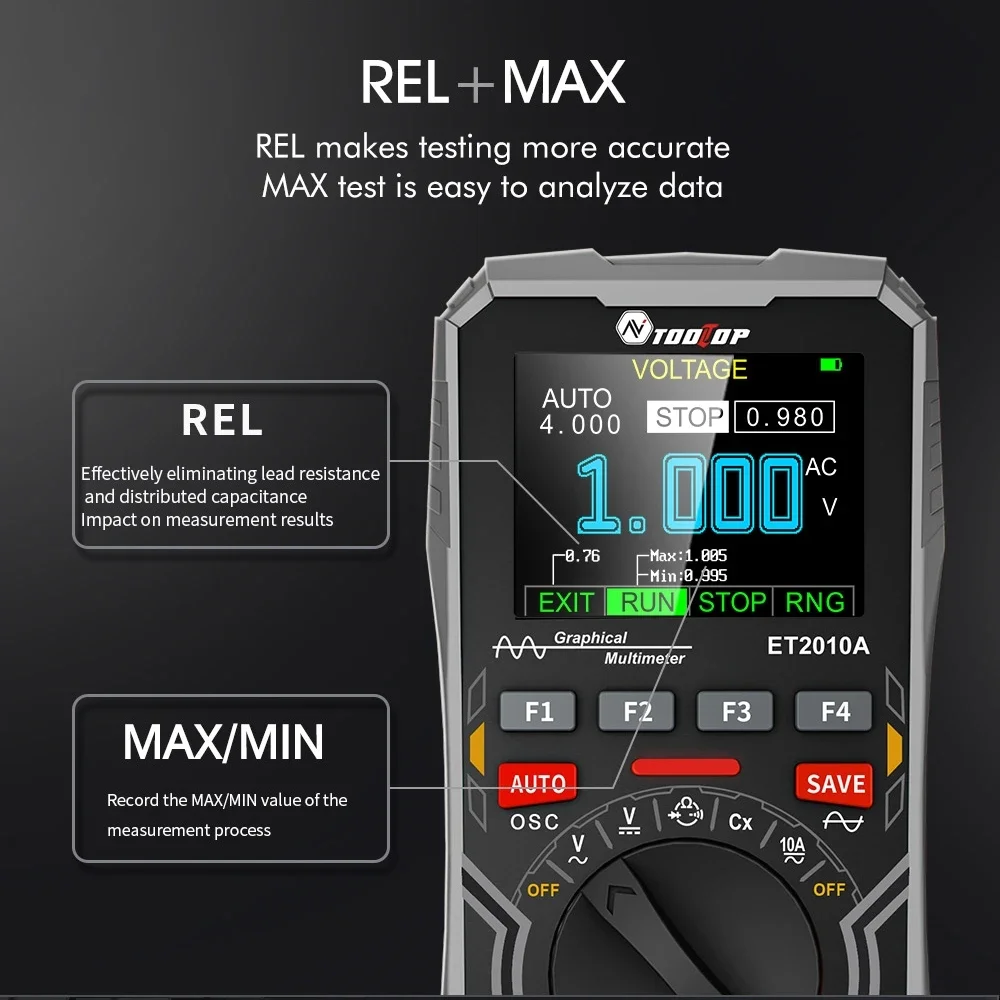

REL+MAX functions
REL makes testing more accurate, MAX test is easy to analyze data
SAFETY
Auto range
10A fuse double protection
Save function for data and waveform in the measurement;
a total of 100 sets of data and 10 waveform can be saved.
Hold down the f4 key while Turn the knob to turn on the machine
Can enter mute mode
Auto Sleep
15 minutes no operation,machine automatically shuts down
small volume,light weight and portable
Applicable scenarios: car overhaul, equipment maintenance,power system maintenance.
